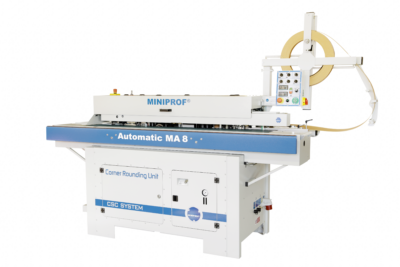

Edge banding machine Automatic MA 8 K
(precise trimming unit with cutting sheers)
Edge banding machine Automatic MA 8 P
(precise trimming unit with saw blade)
MINIPROF Automatic MA 6 is our top series of MINIPROF edge banding machines offering many thoughtful and oftentimes unique solutions that guarantee high quality of edge banded pieces and maximum comfort while working.
A perfect craftsmanship, as well as high-quality and quick service, including consulting, will surely guarantee you a long lasting satisfaction.
Standard accessories of AUTOMATIC MA 8
- PRE-MILLING UNIT
- REPLACEBLE GLUE POT FOR GLUING 10-60 MM HIGH WORKPIECES
- ROUGH TRIMMING
- PRESSURE UNIT
- PRECISE CUTTING UNIT – IN 2 VERSIONS ( MA 8K / MA 8P)
- MILLING UNIT WITH EASY AND PRECISE „REVOLVER“ ADJUSTMENT
- SURFACE SCRAPPERS
Pre-milling unit
- An unrivalled system of pre-milling enables using only one milling tool, which reduces operating and maintenance costs.
- The rear pneumatic contact pressure prevents chipping off and damaging the end of the edge banded piece.
GLUE APLYING UNIT – removable glue pot for hot melt adhesive
- The patented MINIPROF glue aplying unit enables the machine to operate without the necessity of lubrication.
- Easy regulation of the amount of adhesive to be applied on the piece from 10 – 60 mm.
- Pre-springing of the application unit enables effective application of the correct amount of adhesive to the piece.
- MA 6 and MA 8 machines have a removable glue pot in the standard version, with an option to purchase next glue pots.
Rough trimming
- For trimming band up to 3 mm thickness
- Swinging-type placing of the aggregate guarantees smooth cutting of the band while the machine is running, without any delay of the edge banded piece during cutting.
Contact pressure unit
- 3-roller pressure zone with copying
- It includes 2 fixed pressure rollers, 1 copying roller and elevated guiding of the band for its even gluing to the piece.

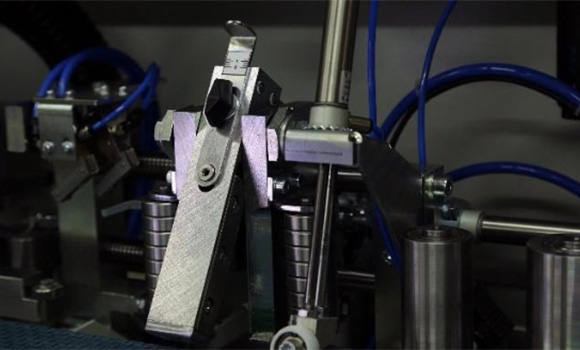

Precise trimming unit with cutting sheers ( MA 8K )

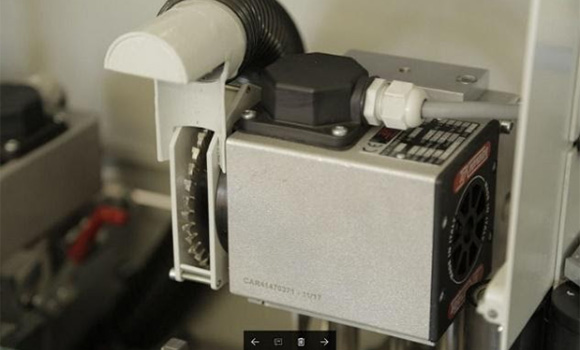

Precise trimming unit with milling tool for R2 or straight trimming ( MA 8P )
Universal milling and corner rounding unit
- The universal aggregate is used for horizontal milling of the edge and at the same time for full corner rounding.
- The height of the part can be 10 - 60 mm.
- Enables corner rounding from a length of 75 mm (MA8K)
Surface scrappers for the perfect finishing touch
- The functions of upper and bottom surface scrappers are the last, but not least important part of the edge banding process.
- Scrappers with fine tuning guarantee perfect result.
- Scrappers are replaceable with possibility of their regrinding and repeated use.
Accessories at extra cost
Automatical cleaning and lubricating of surface scraping unit
- works automatically and sprays the cleaner direct on scraping knives
- quarantee perfectly clean workpieces without the necessity for additional cleaning
- steering through pneumatic system
Wheels especialy for small workshops
- special load-bearing wheels enable the machine to be moved in the event of a confined space in the workshop and significantly increase comfort when working on the edge banding machine.
- all wheels are equipped with a lock
RIEPE spraying system before pre-milling station for perfectly clean workpiece – especialy for PUR hot melts (highly recommended)
- State-of-the-art RIEPE system of spray nozzles is used by all major global manufacturers of edgebanding machines. It is located before the pre-milling station.
- An electronically controlled spraying unit applies a very thin layer of release agent through RIEPE nozzles directly to the top and bottom face of a workpiece. Release agent prevents the surplus adhesive to adhere to its surface and ensures a perfectly clean surface. The need for any final cleaning of the workpiece is significantly minimized, which prevents increase in the production costs.
- Due to the very economical system of application, RIEPE guarantees a minimum release agent consumption which will not have any adverse effects on the operating costs (1 litre of release agent per up to 5000 metres of a workpiece per one RIEPE nozzle).
- RIEPE system saves your time and money. HIGHLY RECOMENDED FOR PUR HOT MELTS.
Radius – profile scraper
- It removes any marks of the milling cutter knives and maximally refines the edge surface
- Possibility to install as addtional accessories
Digital counter of consumed tape quantity
- records the total lenght of consumed tapes
- records the lenght of consumed tape + option reset
Folding workbench extensions
- The extension of the work table is another of the "advantages" for the MINIPROF AUTOMATIC edge banders, which will significantly facilitate the handling and gluing of mainly long and heavy parts.
- Arms that can be folded out in case of gluing larger parts. Set of 2 (for the right and left side of the machine)
- Promo video– tap here
The automatic extraction start-up unit
- provides an immediate and automatic start of the extraction unit connected to the edgebander
Removable glue pot with preheating station
- Purchasing the glue pot with preheating station is required if the customer does not already have the preheating station
Removable glue pot without preheating station
- Serves as an additional (more) spare glue pot
- Purchasing the glue pot is possible if the customer already has the preheating station
- For inserting the replacement tray with adhesive into the machine it is necessary to preheat the adhesive inside the inserted glue pot
Antistatic coolant spraying system RIEPE LP 289
- To cool the glue joint and statically discharge the edging material (necessary for PUR)
